HOW TO: Retrofit Ambient Interior Lighting


  • Please log in to reply
117 replies to this topic

#1 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 03:06 PM

As many of you know it is possible to retrofit the ambient lighting in the front of the A4 which is usually only available as part of the interior light pack. This is a VERY EASY mod to do. It is just 2 LEDs available from the dealer.

Since Nelson told me about this mod, I have had the parts on order from the dealers. Since there is no guide in english with pictures on how to do this modification I will try and explain as best I can on how to do it in a relatively painless manner. It only took me 30 minutes, and it cost under 10 quid for the parts. There is no wiring involved, the connectors are already there to plug the LEDs in.

Make sure you have the following before you begin:

The LEDs from your dealer, Part Number: 8E0919063A
A drill with a 5mm bit
A + screwdriver

I apologise for the blurry pics, but they are fine for these purposes.

The part:
Posted Image

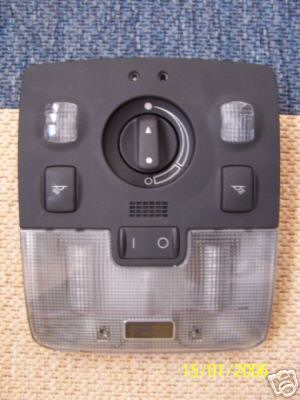

Step 1.) Carefully unclip the two removable panels on your light cluster, in the following order:

Posted Image
Posted Image

Step 2.) Locate the two screws in the light cluster that are preventing it from coming out, and unscrew them both - make sure you have a hand ready to catch the screws otherwise you'll do what I did and nearly lose them down the side of the seats.

Posted Image

Step 3.) Pull out the light cluster, it should come out very easily. Locate the two spade connectors, it's quite hard to see them in this pic but once you have done the above steps you won't miss them.

Posted Image

Step 4.) Clip the part you bought from the dealers in. There is only one way it will go in so dont worry about clipping it back to front.

Posted Image

Step 5.) Connect the LED to the spade connectors, be patient and careful with them, they can be quite fiddley.

Posted Image

Step 6.) Get your drill ready, and put the 5mm drill bit in. Find terrorist balaclava and put on if you wish to jump out with a drill and scare your wife/girlfriend/mother. (unfortunately I didn't have this privledge as my gf was at work today, ffs).

Posted Image

Step 7.) Drill 2 holes in the light cluster you removed, there are circles that protrude the surface and this is where you need to drill. I managed to go a little off center with my first one - don't panic if this happens, just dont deviate too much from the center and you should still be ok.

Posted Image

Step 8.) Put the light cluster back in its place and screw it in.

Posted Image

Step 9.) Replace all the other bits you took off, and check the mod is working by putting the cars lights on.
Step 10.) Wait anxiously until dusk! /ubbthreads/images/graemlins/169144-ok.gif Then enjoy

I hope this is helpful and easy to follow. Many thanks for Nelson for making me aware of the mod in the first place /ubbthreads/images/graemlins/coffee.gif I will post some pics of what it looks like when it gets dark.

#2 Soapsuds

Soapsuds

    Audi RS4

  • Members
  • 3,305 posts

Posted 20 January 2006 - 03:15 PM

[ QUOTE ]
Find terrorist balaclava and put on if you wish to jump out with a drill and scare your wife/girlfriend/mother. (unfortunately I didn't have this privledge as my gf was at work today, ffs).

[/ QUOTE ]

/ubbthreads/images/graemlins/jump.gif absolute classic!!! /ubbthreads/images/graemlins/grin.gif

Nice one - cheers for the guide! Am hoping to order this tomorrow and fit it before the next Chavshire meet! Well done matey - look forward to the night pics! /ubbthreads/images/graemlins/169144-ok.gif

370z Roadster GT

'13 B-Class Sport

'94 1.8 S-Spec Eunos




#3 Redavant

Redavant

    Ford Fiesta ST

  • Members
  • 285 posts

Posted 20 January 2006 - 03:22 PM

[ QUOTE ]
[ QUOTE ]
Find terrorist balaclava and put on if you wish to jump out with a drill and scare your wife/girlfriend/mother. (unfortunately I didn't have this privledge as my gf was at work today, ffs).

[/ QUOTE ]

PMSL You really don't see enough terrorist balaclava's in How To Guides!!!

Genius /ubbthreads/images/graemlins/169144-ok.gif
A4 2.0 TDI S-line Avant in Dog Cock Red
A4 2.0 TDI Black Edition Saloon in Glacier White

#4 Durrsaku

Durrsaku

    Mercedes E55 AMG

  • Members
  • 5,155 posts

Posted 20 January 2006 - 03:45 PM

Nice one. /ubbthreads/images/graemlins/169144-ok.gif
In God we trust, everyone else has to provide evidence

#5 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 04:33 PM

If anyone is having trouble downloading the step 5 pic it can also be found here (edit time expired)

http://tinypic.com/m98z7p.jpg

Imageshack are being useless today so I had to edit and rehost the pics at tinypic.com. I just got to step 5 and the edit time expired /ubbthreads/images/graemlins/smashfreakB.gif

#6 Durrsaku

Durrsaku

    Mercedes E55 AMG

  • Members
  • 5,155 posts

Posted 20 January 2006 - 04:54 PM

Some people are just so slow. /ubbthreads/images/graemlins/grin.gif
In God we trust, everyone else has to provide evidence

#7 Chav

Chav

    Porsche GT3

  • Members
  • 12,612 posts

Posted 20 January 2006 - 04:56 PM

[ QUOTE ]
If anyone is having trouble downloading the step 5 pic it can also be found here (edit time expired)

http://tinypic.com/m98z7p.jpg

Imageshack are being useless today so I had to edit and rehost the pics at tinypic.com. I just got to step 5 and the edit time expired /ubbthreads/images/graemlins/smashfreakB.gif

[/ QUOTE ]

Why not just upload the pictures to TSN? /ubbthreads/images/graemlins/169144-ok.gif

#8 Nelson_R32

Nelson_R32

    Nissan GTR

  • Members
  • 3,919 posts

Posted 20 January 2006 - 06:21 PM

Very good write up /ubbthreads/images/graemlins/smile.gif

Just one thing though; you've drilled the holes in the light panel too small. You need a drill bit that will fit exactly into that 'crevace' (I think its a 7 mil drill bit IIRC)

Otherwise, perfect /ubbthreads/images/graemlins/wink.gif

#9 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 06:31 PM

Are you sure nelson? I am sure you said before it was 5mm.

Any bigger I reckon they would look gaping.

#10 Nelson_R32

Nelson_R32

    Nissan GTR

  • Members
  • 3,919 posts

Posted 20 January 2006 - 06:45 PM

Yup, very sure; I made the mistake first time of only drilling to the first markers. Then I saw an A3 with interior light pack in our showroom and realised they were meant to be ALLOT bigger! /ubbthreads/images/graemlins/tongue.gif

#11 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 06:49 PM

[ QUOTE ]
Yup, very sure; I made the mistake first time of only drilling to the first markers. Then I saw an A3 with interior light pack in our showroom and realised they were meant to be ALLOT bigger! /ubbthreads/images/graemlins/tongue.gif

[/ QUOTE ]

Ok mate, I guess it makes a difference with how the light is projected if the holes aren't big enough?

I will sort this out a bit later /ubbthreads/images/graemlins/169144-ok.gif

#12 Nelson_R32

Nelson_R32

    Nissan GTR

  • Members
  • 3,919 posts

Posted 20 January 2006 - 06:57 PM

Yeah, its allot more BLING when the holes are bigger /ubbthreads/images/graemlins/laugh.gif

#13 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 07:01 PM

[ QUOTE ]
Yeah, its allot more BLING when the holes are bigger /ubbthreads/images/graemlins/laugh.gif

[/ QUOTE ]

OK I just re-drilled the holes with a 7MM bit - it is definately better with the bigger holes - cheers again mate!

#14 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 07:30 PM

I've just tried to take some pics of how the install looks at night, but my camera is so /ubbthreads/images/graemlins/dung.gif it won't capture the ambient lighting properly.

If anyone has got a decent camera and has performed the mod post some pics up /ubbthreads/images/graemlins/169144-ok.gif

#15 Avus_Bub

Avus_Bub

    Audi RS4

  • Members
  • 3,400 posts

Posted 20 January 2006 - 07:59 PM

[ QUOTE ]

If anyone has got a decent camera and has performed the mod post some pics up /ubbthreads/images/graemlins/169144-ok.gif

[/ QUOTE ]

Will do - After I've fitted my Bub Special rear LED's /ubbthreads/images/graemlins/wink.gif

Pic's to follow /ubbthreads/images/graemlins/169144-ok.gif

BUB
It costs a lot of money to look this cheap. Dolly Parton

Bub's 240ps S-Line Quattro Avant & Bikes

#16 BenjaminTDI

BenjaminTDI

    BMW 330d

  • Members
  • 1,643 posts

Posted 20 January 2006 - 08:02 PM

[ QUOTE ]
[ QUOTE ]

If anyone has got a decent camera and has performed the mod post some pics up /ubbthreads/images/graemlins/169144-ok.gif

[/ QUOTE ]

Will do - After I've fitted my Bub Special rear LED's /ubbthreads/images/graemlins/wink.gif

Pic's to follow /ubbthreads/images/graemlins/169144-ok.gif

BUB

[/ QUOTE ]

That's so bub special about them, do they project avus silver light? /ubbthreads/images/graemlins/beerchug.gif

#17 Avus_Bub

Avus_Bub

    Audi RS4

  • Members
  • 3,400 posts

Posted 20 January 2006 - 08:30 PM

[ QUOTE ]

That's so bub special about them, do they project avus silver light? /ubbthreads/images/graemlins/beerchug.gif

[/ QUOTE ]

No - Just red I hope.... /ubbthreads/images/graemlins/UHOH7.GIF

They're gonna be special because if I pull my finger out I'll be the first one here to fit them!!

BUB /ubbthreads/images/graemlins/169144-ok.gif
It costs a lot of money to look this cheap. Dolly Parton

Bub's 240ps S-Line Quattro Avant & Bikes

#18 Sponge

Sponge

    I've got a brand new combine harvester

  • Members
  • 5,853 posts

Posted 21 January 2006 - 12:11 AM

I am soooooo going to order that part tomorrow! /ubbthreads/images/graemlins/laugh.gif
2011 Peugeot 5008 1.6 HDI Exclusive Posted Image
2005 Audi A4 Avant S-Line, 2.0 TDI Posted Image SOLD August 2012
Flickr // You Tube // Dropbox. Use the Dropbox link and we both benefit. +++
Towbar Fitting Guide

#19 hashluck

hashluck

    Saab 9-3 Aero

  • Members
  • 777 posts

Posted 21 January 2006 - 01:05 AM

Please add this to the essential guide! How to save £145

#20 Sponge

Sponge

    I've got a brand new combine harvester

  • Members
  • 5,853 posts

Posted 21 January 2006 - 11:42 AM

Just called Liverpool Audi and they don't have the part in stock. They can't order it today, apparently, but asked me to call back Monday. They confirmed the price at £8.46 + VAT.
