Soapsuds Posted February 2, 2006 Report Share Posted February 2, 2006 I am going to be undertaking the installation of my own lowering springs in the not too distant future. I have read a very good tech article on the AudiWorld forum, but it doesnt apply to the different rear suspension on the Avant (separate spring and shock). Can someone please send me / post a photo of the rear suspension compnents / explosion view for 2003 B6 A4 Avant (1.9TDi if it makes any difference....!). Front would also be helpful for reference! PM me if you want my email addy to send to. Hopefully, someone can help! Thanks Link to comment Share on other sites More sharing options...

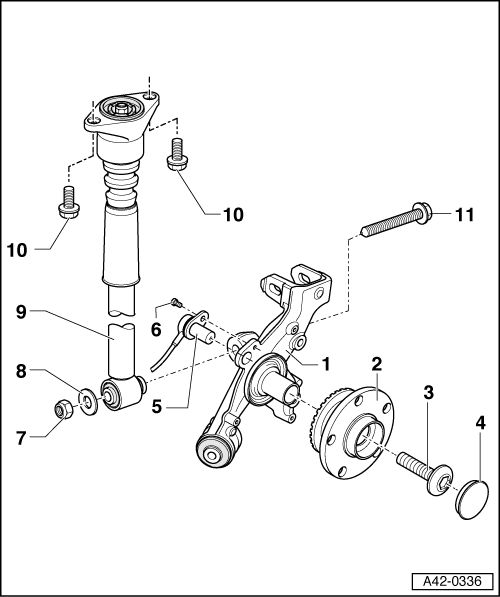

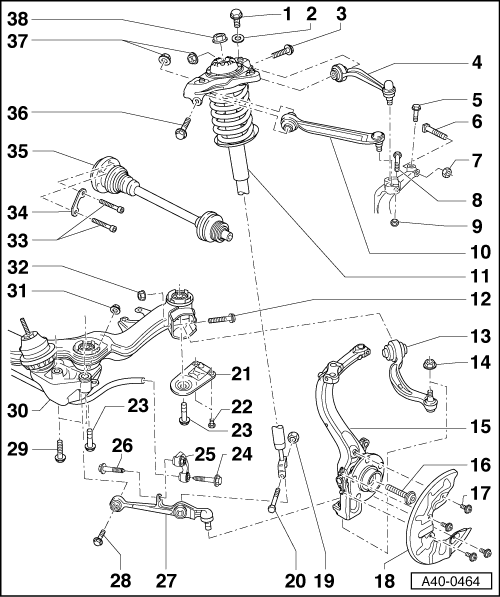

Tobes49 Posted February 2, 2006 Report Share Posted February 2, 2006 What about these? Rear: Front Link to comment Share on other sites More sharing options...

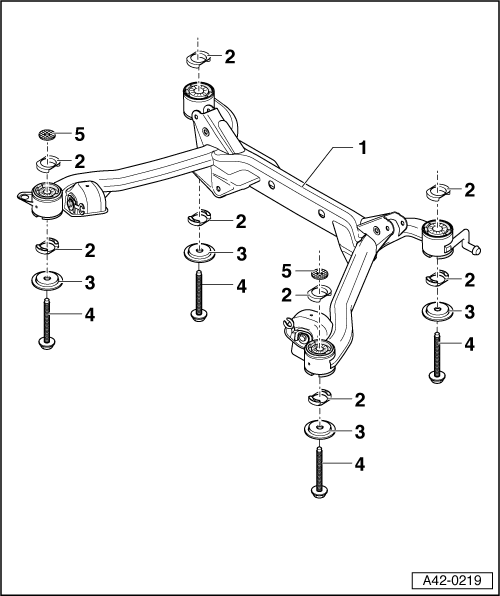

Tobes49 Posted February 2, 2006 Report Share Posted February 2, 2006 pic2 Link to comment Share on other sites More sharing options...
Tobes49 Posted February 2, 2006 Report Share Posted February 2, 2006 pic3 Link to comment Share on other sites More sharing options...
Tobes49 Posted February 2, 2006 Report Share Posted February 2, 2006 pic4 Link to comment Share on other sites More sharing options...
Soapsuds Posted February 2, 2006 Author Report Share Posted February 2, 2006 Tobes - you are a star my friend!!!! Mine is the one with the spring attached to the rear swing arm (big bulky bit) - spot on mate. Thanks very much indeed!!! Have sourced some PI Springs for £100 delivered, so come my birthday, i will get them and spend an entire day fitting them, swearing in the process no doubt!!! Thanks again bud! Link to comment Share on other sites More sharing options...
